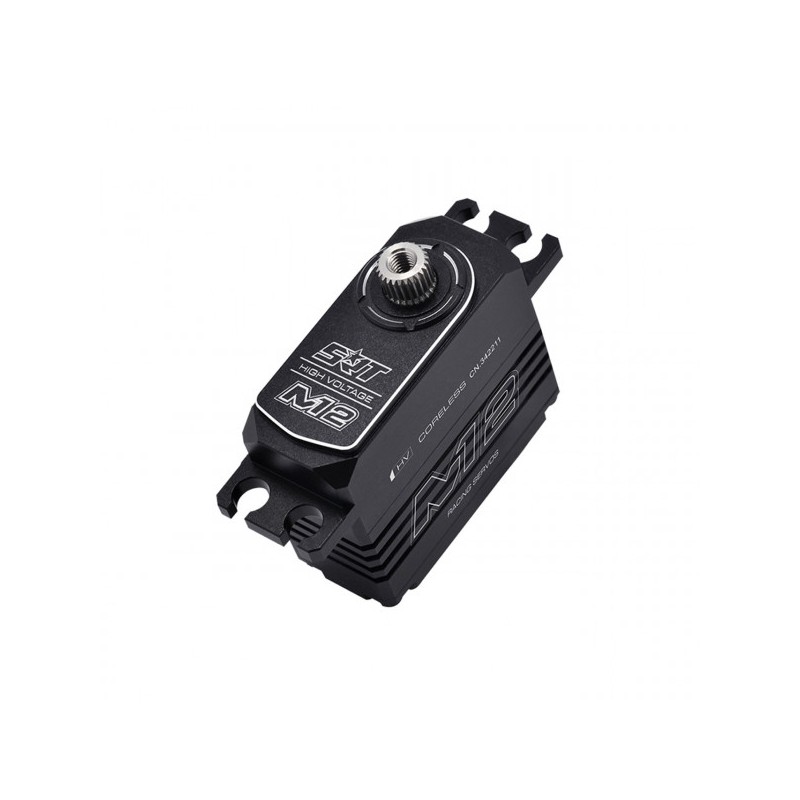

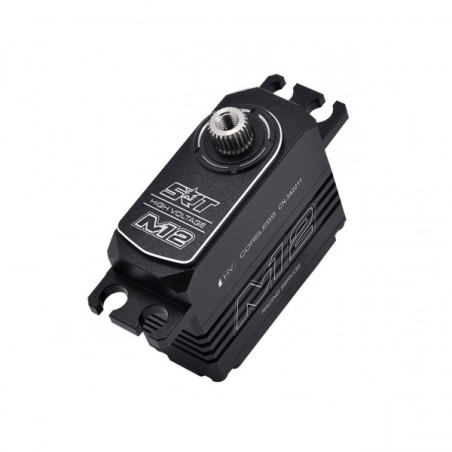

CHM12 - SRT M12 1/12 Pancar HV CORELESS Servo

KEY FEATURES

& special 1/12 pancar servo, compatibly apply to 500 helicopter & Mono1 RC boat

& Incredible efficiency and low power consumption

& 2 μsec Dead Band

Application :
1/12 Pancar              500 Helicopter               Electric/ BOAT



PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Copper & Aluminum
control system: pulse width control
working frequence: 1520μs / 333hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.08 sec/60 degrees at no load
operating speed (7.4v): 0.075 sec/60 degrees at no load
operating speed (8.4v): 0.065 sec/60 degrees at no load
stall torque (6.0v): 6.5kg.cm (90.3 oz/in)
stall torque (7.4v): 9.5kg.cm (131.9 oz/in)
stall torque (8.4v): 11.0kg.cm (152.8 oz/in)
potentiometer drive: direct drive

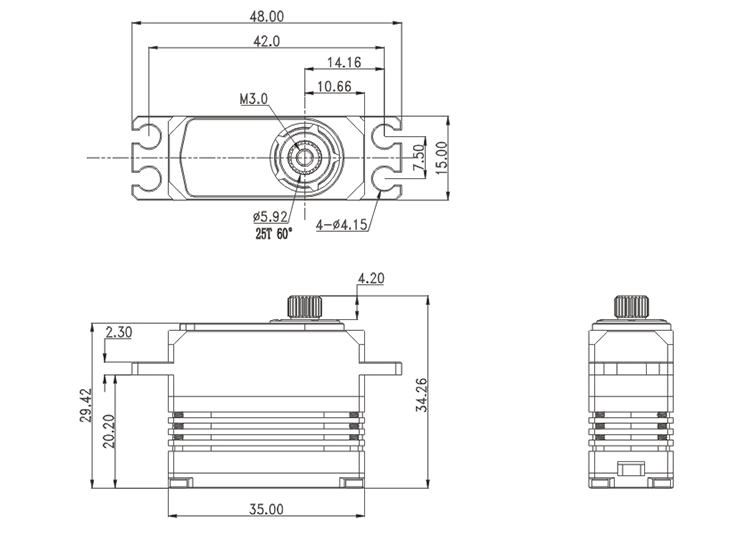

dimensions: 35.0x15.1x29.5 mm /1.38x0.59x1.16 in
weight: 35.0g (1.23 oz)
connector wire length: jr 180 mm



SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.

All of SRT servos are available to be customized for easy installation by OEM order.
